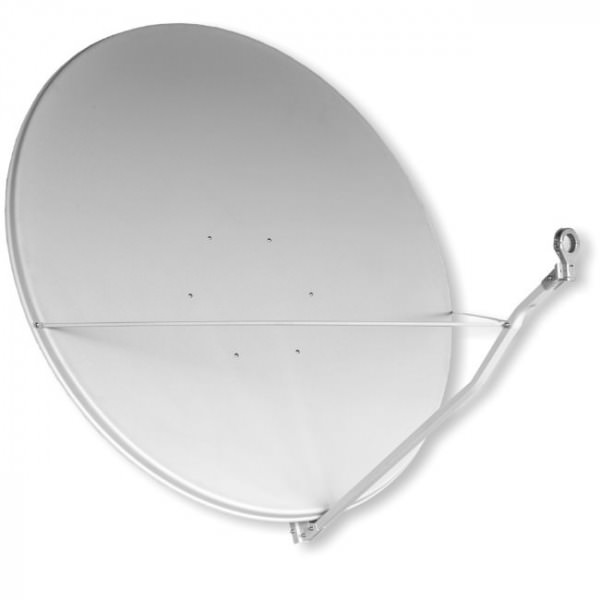

Sat Antenne Gibertini 150cm hellgrau

Sat Antenne Gibertini OP 150 L

150cm Offset Antenne: 155x166 cm

ACHTUNG: Antenne kann nur in Baar ZG abgeholt werden, KEIN Versand !
ATTENZIONE: Antenna non può essere spedita, bisogna venirla a prendere a Baar ZG !
ATTENTION: Cette antenne ne peut pas être expédié, ils doivent être retirés chez nous à Baar ZG !

Technische Daten für Gibertini 150 cm Aluminium Offsetantenne

oFrequency range(Ghz): 10.00-13.00
oOutside dimension: 155.0x166.0 cm
oIllumination Efficiency: 70%
oGain @ 10,95 Ghz (dB): 43.3
oCross polarisation on axis (dB): >30
oFirst side lobe (dB): 26
oNoise temperature @ 30° elevation(K): 33
oF/D radio: 0.66
oBeam width @ 3dB (deg): 1.1
oElevation angle range (deg): 20 - 90
oOffset pointing angle (deg): 21.3
oMast clamp: 55 - 100 mm
oWind pressure @ 120 km/h: 235 kg
oOperating temperature range: -30°C +70°C
oHumidity: up to 100% condensed
